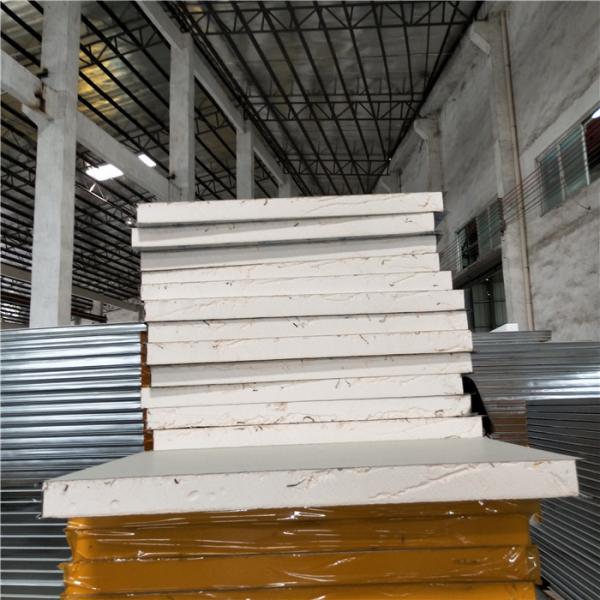

1. Description
fast assemble fireproof 50mm phenolic sandwich panels for
supermarket
2. Information
| product name | phenolic sandwich panel |
| length | no limited |
| width | 950 , 960,1150mm |
| application | warehouse , building , prefab house , worker camp , office ,
construction site ect |
| thickness of steel sheet | 0.326 , 0.376 , 0.426 , 0.476mm |
| density | 38-80KG / M3 |
| shipment methods | sea , land transportation |
| color | any color |
| function | fireproof , sound insulation , heat insulation |
| origin of country | china |
| certificate | ISO9001-2000 , SGS , GQT |
| volume | 23m3 / 20ft container , 63m3 / 40HQ |
| delivery term | EXW , FOB , CFR , CIF |
| payment term | TT , L/C at sight |
| package | shipment in bulk without any package |
3. Feature
Length : as per requirement considering the transportation
constraints
Thickness of steel sheet : 0.326mm , 0.376mm , 0.4296mm , 0.476mm ,
0.526mm
Density : 40-80kg / m3
Fireproof
heat insulation
Sound insulation
Economic and beautiful in appearance
Light weight and environmental protection
4. Introduction
The phenolic sandwich panel uses the color steel sheet as the
surface , the phenolic foam as the core of composite board , wall panel or tile has 50mm , 75mm , 100mm , 125mm , 150mm foam with
0.326mm , 0.376mm , 0.426mm , 0.476mm steel sheet widely use forPrefabricated house , steel structure , clean room , cold storage ,
partition wall panel , factory , warehouse , supermarket , hospital
, gymnasium ect . It is low cost and thermal insulation , fireproof , sound
insulation .The fix width of wall panel and roof tile have 1150 and
950mm . Length is no limte but less than 12000mm because of the
transportation . The surface metal coat could adopt galvanize
aluminum steel sheet , galvanized aluminum zinc color steel sheet
and the galvanized color steel sheet .
5. Construction project
| name | picture |
| purifying workshop |  |
| warehouse |  |
| construction site |  |
| office |  |
6. Comparison of phenolic sandwich panel and other related products
Comparison of thermal insulation performance
| Material name | Thermal conductivity (W / (m .k) | Volume weight | Energy saving & insulation | Maximum working temperature |
| Phenolic foam | 0.02~0.036 | 40~80 | Very good | 180℃ |
| Polyurethane foam | 0.022~0.036 | 25~35 | Very good | 110℃ |
| Polystyrene foam | 0.033~0.045 | 25~50 | Good | 60℃ |
| Rock wool | 0.042~0.064 | 40~60 | ordinary | 500℃ |
Comparison of burning performance
| material | Use range of temperature | Limiting case | Oxygen index | Vertical burning time | Smoke density level |
| Burning time (s) | Flame height | Index value | Measured value | | |
| Polystyrene sandwich panel | +75~-80 | 70℃ shrink | | ≤30 | ≤250 |
| Polyurethane | +130~-110 | 140℃ soften | ≥32 | ≤30 | 100 |
| polyethylene | +65~-80 | 80℃ shrink | ≥32 | ≤30 | |
| Phenolic foam | +180~-200 | 220℃ Change color | ≥52 | | 10 |
7. Company information
Gaosen Building Material Co.,ltd was found in 2003 and is a
manufacturer of the light steel Villa , container house ,
prefabricated house , Large -Scale factory , light steel structure
, workshop and various color steel sheet sandwich panel ect . The "
Super quality , super product and super service " as the purpose .
Gaosen Building Material Co.,ltd is the forerunner of Foshan
Jinyuan Building material Co.,ltd . In order to expand the
development and integrate the production and demand of the market ,
we set up the Foshan Jinyuan Building Material in 2012 .With more than 10 years of development , is one of the largest
sandwich panel manufacturer in south china .The factory covers an areas of 60000 square meters , including
the construction area 30000 square meters . We have 4 factories and
more than 500 employees , the yearly output of sandwich panel has
reached 8 millions square meters , daily maximum capacity of 40000 square meters.
The main product of XPS / EPS (ploystyrene ) / rock wool / glass
wool / phenolic / thermosetting sandwich panel and roof tile were
supplied to Eastern Asia , Southeast Asia , Middle East , Africa ,
Oceania , North America and worldwide . Besides , the MGO sandwich
wall panel is widely use for the building of hospital , office and
workshop , it doesn't use for roof tile because of its weigth .
Since its creation , we have passed the ISO9001-2000 , SGS , GQT
certificate . Strong techical power , excellent quality , delivery
management and after sales service are our guarantee to customer .
Strict production control , inter-produce inspection , outgoing
inspection for every product make the best quality assurance .
Welcome to Foshan Jinyuan Building Material Co.,l.td , lets win -
win cooperation to create a better tomorrow .
8. Production workshop
9. Loading container
10. FAQ
Q1 : Are you are manufacturer or trading company ?
We are manufacturer .
Q2 : When do you ship the goods if we place an order with you ?
With 2-10 days after received the payment .
Q3 : Can we have the samples , is it free ?
Yes , we can give away the small sample but no including the
freight charge .
Q4 : What payment term be used for you ?
TT , L/C at sight . As a rule , 30%TT deposit after sign the
contact , the balance should be paid before delivery .
Q5 : How many quantity put into a 40HQ ?
It depends on the item itself (Length , width , thickness ) , but
usually 63 cubic meters for a 40HQ .
